FIRE RATED

Core: ASTM D1929

We can put an acrylic window, anywhere in the panel. Any size, any color, even mirrored.

We can make L-cuts to clear your ledges or pipes

We can add electrical passthroughs to accomodate your electrical cords.

We can "ANGLE" the top for attic applications.

In other words, we make the panels to fit your needs.

Grey

Med. Blue

Purple

Black

Brown

Standard LC Partition. This panel consists of a solid foam core, that is fire rated, waterproof and sound absorbant. We use a fire resistant textured cloth surface for the exterior, and finally, we use a specially extruded 6063 airscraft grade aluminum frame, with an anodized surface. The anodizing creates a very hard, attractive surface that will not chip, crack or peel. Each panel is 2.25" thick.

• Lightweight: A medium sized 4'x6' panel only weighs 12.5 lbs.

• Sound Absorbant: A 4'x6' panel is rated at .36 NRC

• Tackable: The surface will accept pins, tacks, and post-it notes

• Waterproof: There is nothing in the panel that water can degrade

• Custom sized: We make them to your size specifications.

Sizes; custom sizes up to 4'x6' only $129 each

Sizes; between 4'x6' and 4'x10" only $209 (LC Supersize)

LC panels can be oriented to stand horizontal or vertical or any combination. All sides can connect. They can easily and quickly connect to each other from any side, at any angle, in any configurations, vertical or horizontal, or stand alone using our LC Connector legs. These panels will beautifully accent your office or room. Perfect for telemarketing applications or for an office that gets rearranged from time to time. LC Panels are designed for the businessperson who wants to quickly divide up an office without spending a fortune. No tools or assembly required. These panels are easy to carry and set-up with "snap-on" connectors, and move or rearrange later if needed. LC Panels are strong and attractive enough to be permanent if so desired. Each LC Panel is assembled using removeable screws. You can actually take the panel apart and remove the cloth for washing (or replacing) and put the cloth back on once it's clean.You can actually hit a panel with a hammer and the dent will not show through the cloth since the cloth (a stretch fabric) normally springs right back to it's original flat surface.

125 htz	250 htz	500 htz	1000 htz	2000 htz	4000 htz
.308	.362	.372	.443	.433	.416
.276	.241	.256	.259	.276	.228
10.4%	33.4%	31.2%	41.5%	36.3%	45.2%

Frequency

Room decay rate

Decay rate w/panel

Absorbed by panel

Notice the good absorbtion qualities between 1000 htz and 2000 htz. This is the frequency found most prevailant in a typical office environment..

The NRC test is nationally recognized as a standard scientific test to determine how much sound an object absorbs. Test procedures are as follows:

A sound frequency is generated (with a tone generator) inside a room. The sound signal is cut, and the sound "decay" is measured. (how long it takes for the sound to die). This test is done for 6 frequencies: 125, 250, 500, 1000, 2000, and 4000 htz. The rate of sound decay is noted for each sound frequency (baseline decay rates)

Then, the panel is placed inside the room. The same test is performed again, at the same 6 frequencies. The new decay rates are noted.

The new decay rates are shorter (in fractions of seconds) because the panel will absorb some sound. You calculate the difference between the baseline decay rates and the new rates, and the difference (in %) is what the panel absorbed for each frequency. Then you calculate the average of the middle 4 frequencies for a final result. This is the NRC acoustic rating.

Although the LC panel absorbs sound well, in it's standard form, there are cases where extra sound absorbtion might be needed, as in sound recording rooms, etc. We can offer this feature.

Extra sound absorbtion. LC Panels can be equipped with our special "sound boards" laminated under the cloth surface if desired. This surface absorbs sound well, and blocks sound transfer because the weight of the panel is tripled. The result is a .46 NRC rating which equates to a 25% increase in sound absorbtion. Great sound blockage. The charge is $69 extra per panel.

LC panels can be "stacked" as shown above. The metal stands used in this layout were custom-made units: 1"x2" steel rectangular tubing, painted white, nice and strong, ($61 each). This display system was made for "Monday Enterprises" and can be snapped together in about 15 minutes.

Notice the LC Full Acrylic panels ($319 each, any size up to 4'x8'). The use of maroon and medium blue fabric (above) is attractive

These are L-shaped panels. (add $20 for L shape) These can be snapped onto a desk or table. Part of the panel can extend to the floor if desired (as shown). You specify the size (up to certain maximums), and the "cutout" size, then color or surface, and we'll make your panels.

Need a custom color? Here are some examples of some solid colors that we can provide. The panel frames are anodized aluminum, silver or black, which will never chip, crack, or peel. Going in the attic? We can make angled cuts.. Add $30 per panel

Need a pass-through port for extension cords, video cameras, or maybe a pipe. No problem. Here is an example of a 2 inch diameter pass through hole. The flange hardware is removable, in case you wish to enlarge the hole later. We can put this pass through anywhere in the panel core. The cost is $20 extra per panel.

We offer doors w/frames. ($350 for 30"W, $375 for 36"W) The frames are made from heavy 2'x2'x.125" steel tubing, mig-welded at all intersections, very strong. Normally painted with light grey epoxy paint for durability. There is a 4" header at the top. The door comes with a lockable knob and keys. We make the door frames quite strong because the door is a standard door, not a flimsy lightweight. This way, if it ever gets damaged, you can get a standard replacement door locally. (Home Depot or Lowes).

LC Acrylic panels. Shown are examples of acrylic panels. Semi or full sizes, double or single pane. We can put the acrylic inside the panel in any size, and any location within the panel. Acrylic is available in clear, smoked, various colors, translucent or opaque. Here's a price example: $289 for a 4'x8", up to 1/2 acrylic. Add $30 for double pane version.

(951) 940 6068 Business, (951) 657 0180 Facsimile

363 W 3rd St., Perris, CA 92570

On behalf of cubicle dwellers everywhere, we think that cubicles could include certain features that make cubicle exsistence more palatable:

1) Black and red tigerskin velvet surface, to raise the excitment level of the cubicle.

2) Taller 108" cubicle walls to increase the privacy of your cubicle

3) Bigger, more powerful shredder so that we can shred a phone book, just for entertainment.

4) Battleship game built into one cubicle wall, so that you can play, "Sink your Battleship" with a co-worker.

5) Mini, golf tee and hole, so that you can stimulate the creative juices by swinging the golf club in the mornings

6) Cubicle periscope, so that you can monitor the activities of the entire office.

7) Clap on, clap off, foot massager at the base of your cubicle desk

8) Automatic voice that says "Thats a great idea" whenever you state a new idea or suggestion in your cubicle

9) Remote controlled stun device in your cubicle guest chair, in case a visitor overstays their welcome.

10) Full size La Z boy recliner on powered wheels, instead of that tiny office chair.

Portafab	Iceberg at Office 1000	Steelcase Panels
National Partitions	Partitions at MSN	Ergo in Demand
Maxon at buyonlinenow	Panels at Clean Sweep Supply	National Business Furniture
Modern Office	Clone Cubicles	Configure office
Bush Pro Panels	Cubicles	In-Plant
Global Panels	Cubicles at Cube Solutions	Panel Systems Unlimited
Nextag panel listing	Demco Panels	Haworth Panels
Officemax	Steelcase Panels	In/Ex Systems

Sample layouts

Layouts 1

Layouts 2

Layouts 3

Layouts 4

Layouts 5

Layouts 6

Layouts 7

Layouts 8

Back home

Big Panel Systems

Here is an example of a sliding window panel, with a screen. We can put these windows anywhere in the panel, and many sizes are available, usually in 12" increments. This panel also features our E-panel conduits for electrical power. Lot's of labor involved, we charge $379 for up to a 4'x8', not counting the conduits.

Notice this large acrylic panel.We still have the protective film over the acrylic. This panel has double electrical conduits mounted low in the panel, and overall, it measures 6'x6'.

Creme

Red

Navy

Custom Carts, sometimes you need one especially for shipping or trade show displays. We design these carts to load/unload quickly. There is no size limit. We can make them any size, vertical (to reduce the warehouse footprint) or horizontal. We make them easy to load/unload, and they can be lockable. They can even be stackable if needed. We normally employ a metal frame with painted wood siding. They are strong, and economical. Prices can range from $700 to $1500 for the really big ones. It all depends upon what your needs are.

Angle top panels. These panels can be made with almost any angle specified. Several can be connected together such as these panels created for Exit Realty in Corpus Christy, Texas.

Here is an expample of our acrylic framing. This fits inside of our aluminum panel framing. We have a single pane design, and a double pane design. The double pane blocks sound better. The single pane costs $40 less per panel. The price varys with the amount of acrylic needed. Fax or email your preferred dimensions, and we'll quote it for you.

Single or double pane acrylic windows

Above are some pictures of dry erase panels that we have made. As you can see, we can make the dry erase almost any size, and put it anywhere in the panel. Also shown are some really cool panels that use green metallic vinyl with charcoal cloth. We sewed them together and covered the panels with them. A series of these were done for Free Software Foundation. Very creative people over there.

Green metallic vinyl, with cloth

Here is a picture of a "notch" panel. If you have pipes or ledges in your wall, we can usually still get the panel to fit that wall.

We can print almost anything on fabric, at $20-30 per yard. That fabric can be used in our LC Panel. Your artwork or pictures can be used. It can be removed for machine washing, if needed. Big panoramic views can be created. On the other hand, we can also print the pictures on a plastic surface, if sound absorbtion is not a big issue.

Any of our Acrylic panels can be fitted with a projection screen film. This allows you to be able to see through the panel (although the view is somewhat blurry), but the acrylic will be able to capture animated video from a video projector. It's a great way to stop traffic, attract attention, and create a unique atmosphere.

LC Polar Fleece non woven fabric. This fabric is about 1/8" thick and is more sound absorbant than any woven fabric. It is also hydrophobic, meaning that it does not absorb liquids. This makes it especially good for panels since it repels liquid stains. Like our woven fabrics, it can be cleaned with soap and water, and is machine washable. LC Polar Fleece is made from recycled Polyethylene terephthalate (PET) and is considered "green".

Dk Brown

Green#1

Green#2

Green#3

Blue#1

Blue#2

Baby Blue

Navy blue

White

Ivory

Sand

Orange#1

Orange#2

Orange#3

Pink#1

Pink#2

Pink#3

Purple#1

Yellow#1

Yellow#3

No fancy color names; Being mostly men, we can't figure out fancy color names like "Chartreuse", "Periwinkle", "Fusia", "Mauve", "Burlywood", "Coral" etc. Therefore, we have our simple system of color names, real plain.

Desk Toppers. These are handy shelf units that sit on your desk to increase your desk space. We can make these in any shape, double deckers, etc. No holes are required for mounting. They can be installed or taken off anytime. They weight around 30 lbs, and are very strong, holding several hundred pounds is no problem. They are quite handy for large printers, scanners, office supplies, etc. The shelf is normally a white melamine surface, with a black circumferential rubber bumper, and the frame can be painted any color. $165 each for most average sizes. Really big ones cost more.

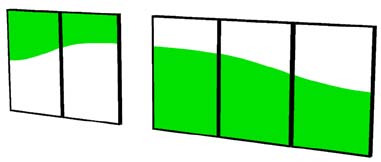

Two Tone panels. The is a simple process where we cut the cores with a complex hand drawn curve, and upholster the cores with two different colors. This can yield a very attactive and unique look. Any two colors can be used. We can even insert a third color in there. In this industry, most panels are fairly boring to look at. So, this is a way for the panels to make more of a statement about your business or image. This work adds to the labor cost, but not much. Each cut costs $25. So, for a two tone panel, the additional cost is $25. For three colors, the additional cost is $50, and so on.

Two tone panels with...decorations

US Army, Fort Polk, Louisiana. 10' tall LC acoustic panel system, with dry erase boards built into the panels.

This system was basically a very large rectangle spanning 80'x100', with 12 large internal rooms. We built nine enclosed shipping carts on wheels, in case they wish to move this system to a different base.

Notice the large double pane acrylic windows and lockable doors

Simulated brick surface, with blue fabric on the other side, for Catalyst Designs.

Dual Laminate panel. This one uses a wood laminate on the bottom, a beige laminate in the middle, and a window at the top. The height is 10 feet. Special design for Texas A&M University. Price was $575 each.

Red naugahyde surface supplied by customer, black frames and conduits. This was prewired too. Nice unique look.

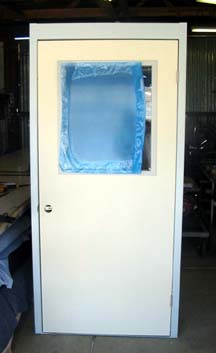

Simple flat panel door with a window in it.

Texas A&M installed our LC panel system, and it looks good. We supplied contoured doors

Texas A&M project included these LC E panels.

Thank you Stephen Cross at Bardex Corporation for these nice shots. This is a multicolored system using our acoustic fabric

Thank you Dena Brennan at FRD Communications for these photos. Dena went with our "Cracked Ice" acrylic windows with a charcoal woven fabric. They looked so good, we almost kept them for ourselves.

Pictures from Unitarian Universalist Congregation in McHenry IL. Thank you Annette Jasiota. Nice installation. Notice in the upper picture, we added a window to the door.

Allstate Insurance in Miami FL just needed some tall partitions to provide some extra privacy and sound reduction. Thank you Roxana Soto for those photos.

Eurotec Vertical Flight Solution built this beautiful trade show booth using LC panels. They also added elements of their own to produce this very professional booth.

University of North Texas used this striking colors and dry erase surfaces. Notice the blacked out door. Thank you Brian Mcfarlin for these nice pictures.

These are 4'x6' magnetic dry erase panels going to Art Batalia at Zion Elementary School in Zion, IL. The magnetic surface is on both sides. Fairly heavy, but should last forever. Cost was $549 each.

Office panel systems present issues that you may not have thought of. See LC Cubicles to explore these issues
